Ahmed Sheets and Plates, located in Safat, Kuwait, stands out as a top manufacturer and supplier of premium stainless steel products, including their renowned Stainless Steel 347 Hollow Bars. The company has built a solid reputation for its dedication to precision, durability, and quality, consistently delivering materials that align with international standards. Thanks to their advanced manufacturing techniques, rigorous quality control, and prompt delivery, Ahmed Sheets and Plates caters to various industries such as chemical, marine, construction, and engineering. Their 347 hollow bars are particularly prized for their outstanding corrosion resistance, stability at high temperatures, and long-lasting performance, making them perfect for demanding industrial and structural uses.

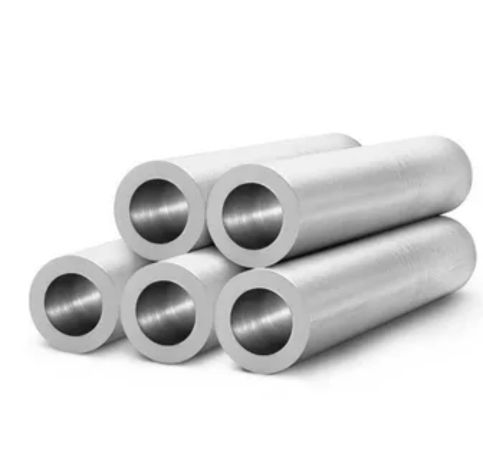

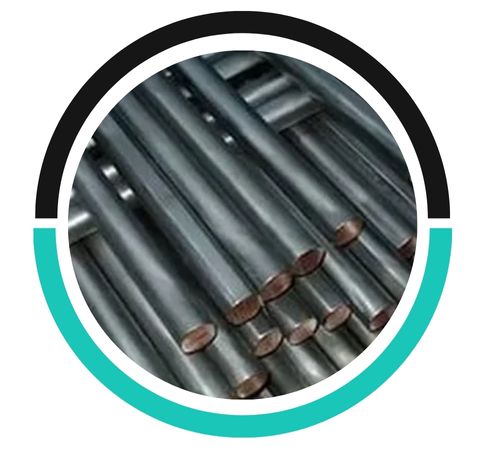

Stainless Steel 347 Hollow Bars are crafted from an austenitic stainless steel alloy that’s stabilized with niobium, which helps prevent the formation of chromium carbide and boosts resistance to intergranular corrosion. This alloy is made up of chromium, nickel, and niobium, giving it exceptional mechanical properties like high tensile strength, toughness, and ductility. These hollow bars maintain their stability even at elevated temperatures and keep their corrosion resistance during welding, ensuring they last over time. Their unique hollow design allows for weight reduction without sacrificing strength, making them ideal for critical industrial, high-temperature, and structural applications.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | Co + Ta | Ni | Fe |
| SS 347 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 17 – 20 | 10xC min 1.00 max | 9 – 13 | 62.74 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Stainless Steel 347 Hollow Bar Size | Chucked true to OD | Chucked true to ID | |||||||
| OD, mm | ID, mm | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| 160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
| 160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
| 170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
| 170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
| 170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
The addition of columbium (niobium) in SS 347 improves its resistance to intergranular corrosion, particularly after welding. It stabilizes the steel's microstructure, preventing carbide precipitation at grain boundaries, and enhances overall corrosion resistance in aggressive, high-temperature environments.
SS 347 hollow bars are commonly used in the chemical processing, aerospace, power generation, and petrochemical industries. Typical applications include heat exchangers, reactor vessels, piping systems, and furnace components, where resistance to high temperatures and corrosion is essential.
You’ll find Stainless Steel 347 Hollow Bars widely used in industries that demand strength, corrosion resistance, and high-temperature performance. They’re commonly found in chemical processing equipment, heat exchangers, pressure vessels, marine components, and automotive parts. Additionally, they’re perfect for power generation, petrochemical, and food processing sectors where durability and reliability are key. Engineers and fabricators often choose 347 hollow bars for their excellent weldability, resistance to pitting, and long service life. Ahmed Sheets and Plates guarantees that their 347 hollow bars meet stringent industrial standards, providing reliable solutions for various industrial and marine applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
