Junaid Metals, located in Manama, Bahrain, has earned a solid reputation as a reliable manufacturer and supplier of top-notch metals, particularly Phosphorous Bronze Bars and Rods. These alloys are celebrated for their remarkable strength, resistance to corrosion, and outstanding wear properties, all meticulously crafted to meet stringent industrial standards. By blending cutting-edge production methods with rigorous quality control, Junaid Metals ensures that their Phosphorous Bronze Bars and Rods are both durable and dependable. Perfect for applications that require toughness and longevity, these products serve a variety of industries, including engineering, electrical, and marine sectors. With a strong focus on customer satisfaction, Junaid Metals guarantees consistent performance and prompt delivery.
Phosphorous Bronze Bars and Rods are copper-based alloys enriched with tin and phosphorus, which boost their strength, hardness, and resistance to corrosion. Typically, the composition features 0.5–1% phosphorus and 5–10% tin, resulting in excellent wear resistance and low friction properties. Mechanically, these bars and rods showcase high tensile and yield strength, along with good fatigue resistance. They maintain their shape under stress and resist deformation, even in challenging environments. This blend of toughness, resilience, and corrosion resistance makes Phosphorous Bronze an ideal choice for demanding mechanical and electrical applications.
| Specifications | AMS 4625, ASTM B139, ASME SB139 |

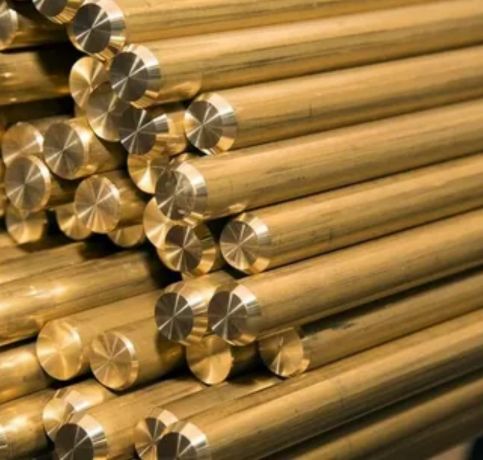

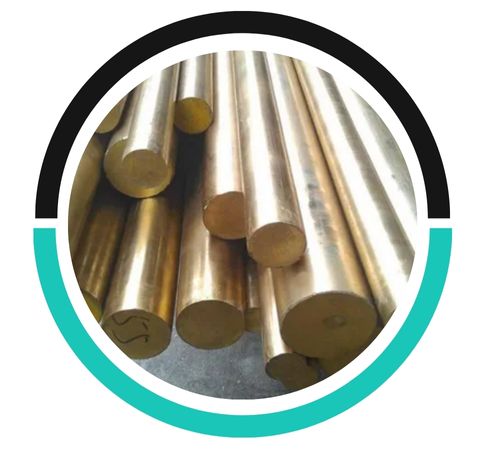

| Phosphor Bronze Round bar size | Diameter: 3mm~800mm |
| Phosphor Bronze Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

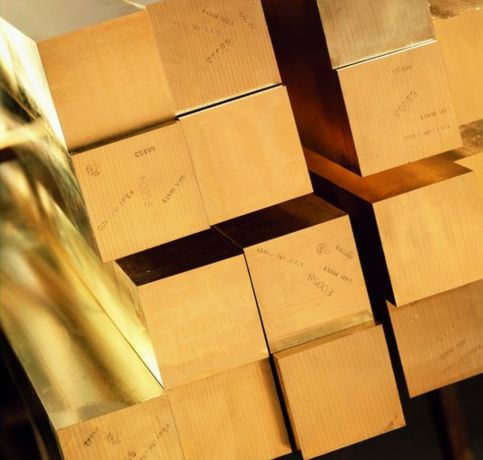

| Phosphor Bronze Square bar size | 4mm*4mm~100mm*100mm |

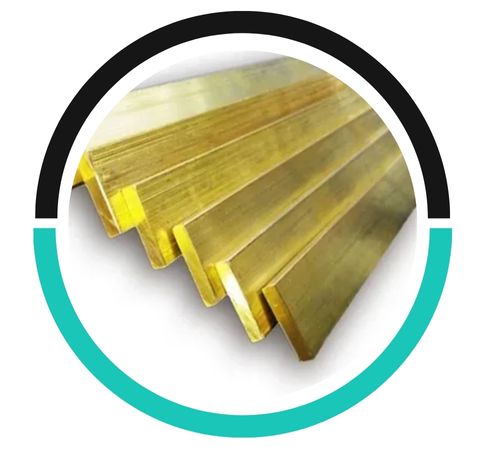

| Phosphor Bronze Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

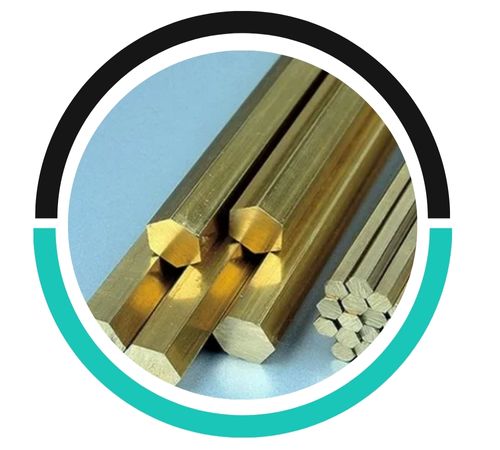

| Phosphor Bronze Hex Bar size | 2mm~100mm |
| Phosphor Bronze Billet Size | 1/2″ to 495mm Diameter |
| Phosphor Bronze Rectangles Size | 33mm x 30mm to 295mm x 1066mm |

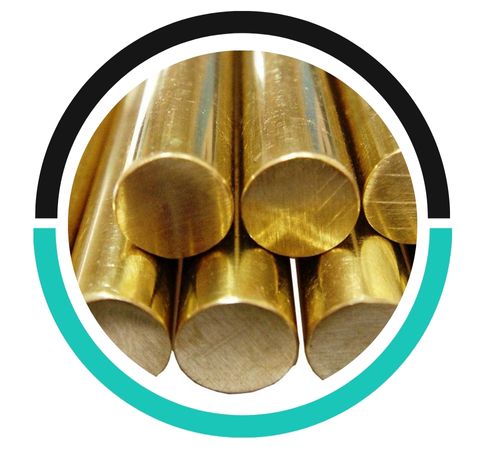

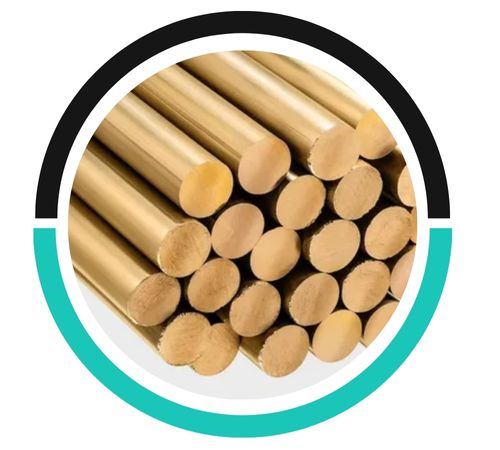

| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Length | 1000mm-6000mm |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Phosphor Bronze Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |

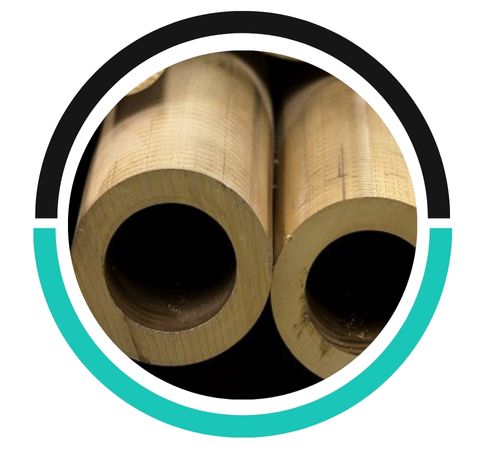

| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Alloy number | Sn | P | Pb | Zn | Cu+Sn+P |
| C5191 | 5.5-7.0 | 0.03-0.35 | ≥99.5 | ||
| C5441 | 3.0-4.5 | 0.01-0.50 | 3.5-4.5 | 1.5-4.5 | ≥99.5 |
| Grade B.S. 1400: 1985 | Nominal Composition | 2% PS N/mm Min | Tensile Strength N/mm Min | Elongation % Min | Brinell Hardness Min |
| PB1 | 89/10/01 | 130 | 250 | 5 | 60 |
| PB1 | 88/12 | 140 | 260 | 7 | 80 |
| PB1 | 90/10 | 130 | 250 | 5 | 60 |
| PB1 | 90.5/9.5 | 130 | 240 | 5 | 80 |
| LPB-1 | 87/8/2/3 | 80 | 175 | 7 | 60 |
| Pb2 | 88/12 | 120 | 195 | 5 | 60 |
| Pb2 PB | 88/12 95/5 | 145 130 | 295 240 | 5 5 | 80 80 |
Phosphorus bronze bars can be welded, but it requires care. The material tends to be brittle at high temperatures, so preheating and using appropriate filler materials are recommended for successful welding.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
Phosphorous bronze rods are available in diameters ranging from 1/8" to 12" and lengths up to 20 feet. Finishes include hot-rolled, cold-rolled, extruded, polished, and custom-machined.
Phosphorous Bronze Bars and Rods find extensive use in industries that prioritize durability, conductivity, and resistance to corrosion. Common applications include bearings, bushings, gears, springs, and precision components. Their superior wear resistance makes them perfect for marine hardware, fasteners, and electrical connectors. The alloy’s low friction and high fatigue strength facilitate smooth operation in moving parts, while its ability to withstand seawater and chemical exposure ensures a long lifespan in tough conditions. Additionally, Phosphorous Bronze Bars and Rods are utilized in musical instruments, hydraulic components, and automotive systems, showcasing their versatility across various fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
