Welcome to Junaid Metals, your trusted partner in Manama for high-performance materials. We take pride in supplying industry leaders across Bahrain and beyond with superior-grade Nitronic 40 bar and rod. Known for its exceptional strength and corrosion resistance, this alloy is engineered to excel where standard stainless steels fall short. Our commitment is to provide not just a product, but a reliable solution that enhances the durability and performance of your most critical projects, backed by our local expertise and dedication to quality service.
Nitronic 40 stands out due to its unique composition, which includes a careful balance of chromium, nickel, and nitrogen. This specific formula grants it remarkable mechanical properties, including a high yield strength that significantly surpasses common 300-series stainless steels. It also maintains excellent toughness and ductility, even in challenging environments. This combination means it can handle extreme pressures and stresses without compromising its structural integrity, making it a robust choice for demanding mechanical applications.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

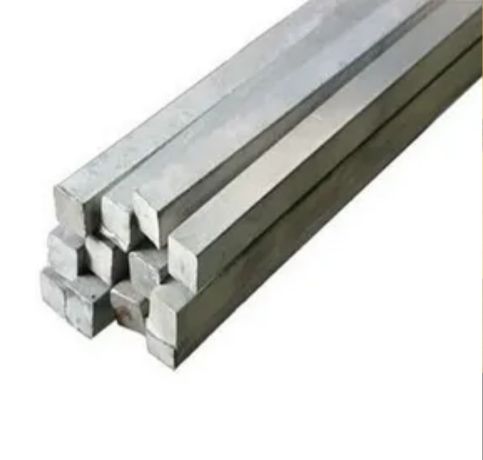

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

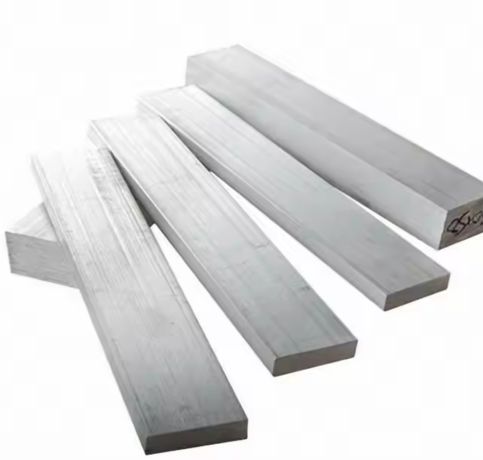

| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |

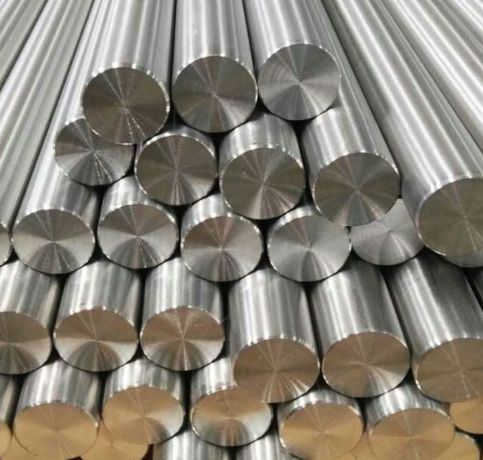

| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
The unique qualities of Nitronic 40 bar and rod make it ideal for a wide range of demanding uses. You’ll commonly find it in components for marine hardware, chemical processing equipment, and fasteners that must withstand corrosive seawater and aggressive chemicals. It’s also a top choice for shafts, valves, and pump parts in the oil and gas industry, where reliability is paramount. Essentially, wherever you need a material that offers a superior mix of strength and corrosion resistance, Nitronic 40 provides a dependable and long-lasting solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
