Nestled in the industrial heart of Manama, Bahrain, Junaid Metals has established itself as a trusted name for robust and reliable metallurgical solutions. Our specialization lies in the expert manufacturing and supply of Monel forgings, a testament to our commitment to quality and durability. We understand that in demanding sectors, components must withstand extreme conditions, which is why we pour our expertise into every forging, ensuring each piece meets the precise needs of our clients and upholds the highest standards of performance and longevity in the region and beyond.
The exceptional strength of Monel forgings stems from their unique composition, primarily a nickel-copper alloy enriched with iron and other trace elements. This blend grants the material outstanding mechanical properties, including high tensile strength and excellent resistance to corrosion, even in the most aggressive environments like saltwater and acidic solutions. It maintains remarkable toughness across a wide range of temperatures, from sub-zero chill to elevated heat, and offers good fatigue strength, making it a uniquely reliable choice for critical applications where failure is not an option.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

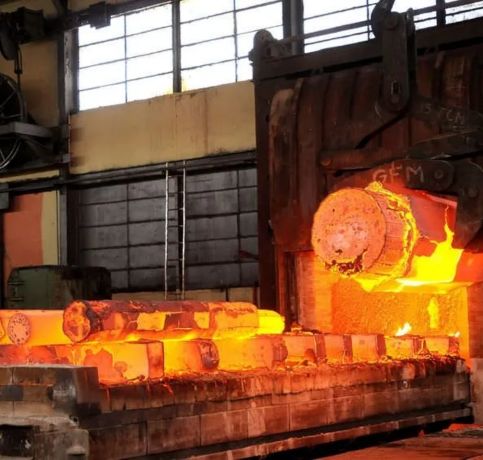

The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

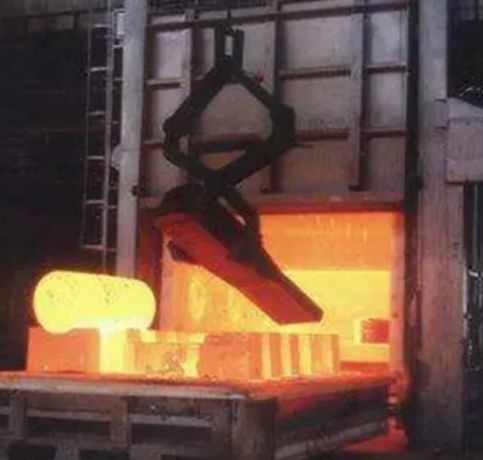

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
You will typically find Monel forgings hard at work in the most challenging industrial settings. They are indispensable in marine engineering for propeller shafts, pump components, and seawater valves, where their resistance to saltwater corrosion is paramount. The oil and gas industry relies on them for wellhead parts and fasteners, while chemical processing plants use them in vessels and piping systems that handle corrosive agents. From aerospace components to power generation equipment, these forgings provide a backbone of safety and reliability where ordinary metals would quickly succumb.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
