Located in the bustling industrial heart of Manama, Bahrain, Junaid Metals stands as a trusted partner for high-performance materials. We specialize in supplying superior Incoloy 925 bars and rods, known for their exceptional resilience in the most demanding environments. Our commitment goes beyond mere supply; we provide reliable, high-integrity materials that form the backbone of critical projects. Sourcing from Junaid Metals means investing in durability and performance you can count on.
Incoloy 925 is a nickel-iron-chromium alloy strengthened by additions of molybdenum, copper, and titanium. This specific composition gives it outstanding resistance to corrosion, particularly from acidic environments like sulfuric and phosphoric acid. Mechanically, it is incredibly strong and tough, retaining these properties even under extreme temperatures and pressures. It can be readily welded and fabricated, making it a versatile choice for engineers.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

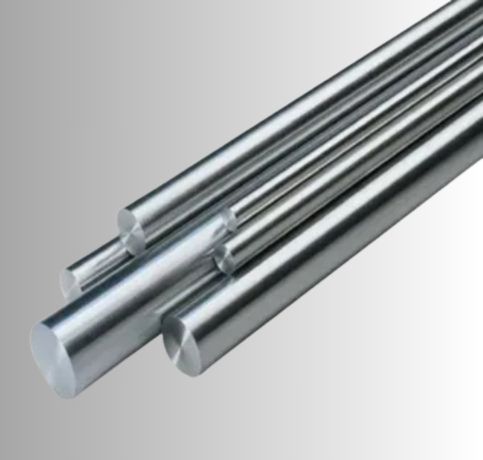

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |

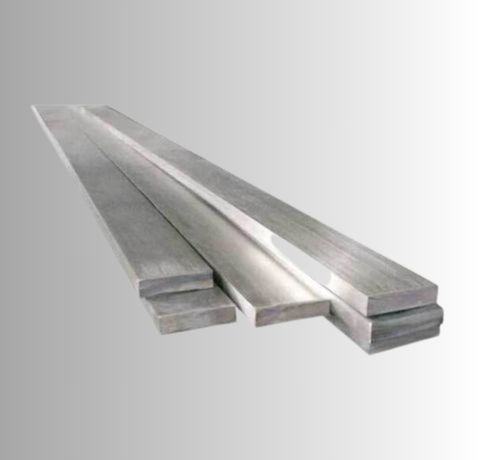

| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |
| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
These robust bars and rods are essential in challenging sectors like oil and gas, where they are used for components like tubing hangers, valves, and shafts that withstand sour gas. They are equally vital in chemical processing equipment, marine engineering, and pollution control systems. Their ability to resist stress-corrosion cracking and pitting makes them ideal for safety-critical applications where failure is not an option, ensuring long-term reliability and performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
