Incoloy 800/800H/800HT Bars/Rods

Welcome to Junaid Metals, your trusted partner in Manama, Bahrain, for specialized alloys built to withstand the most demanding environments. We are proud to manufacture and supply high-performance Incoloy 800, 800H, and 800HT bars and rods. These materials are engineered for exceptional strength and reliability, making them a cornerstone for industries where failure is not an option. Our commitment is to provide not just a product, but a dependable solution that ensures the longevity and efficiency of your critical applications, backed by our local expertise and global standards.

Incoloy 800 Rods Dealer in Riffa, Incoloy 800 Round Bars Manufacturer in Riffa, Incoloy DIN 1.4958 Square Bars Supplier in A'ali, Incoloy Alloy 800 Flat Bars Price List in Manama, Incoloy 800HT Rectangular Bars Supplier in Hamad Town, Incoloy 800 Bars Price List in Bahrain, Incoloy Alloy 800H Round Bars Exporter Stockist in Sitrah, Stockist of Incoloy 800HT Round Bars in Sitrah

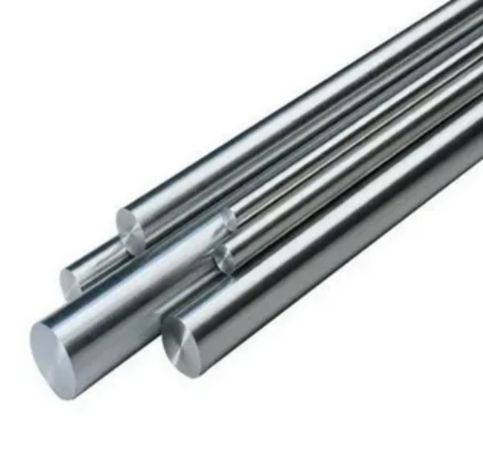

Incoloy 800 Round Bars

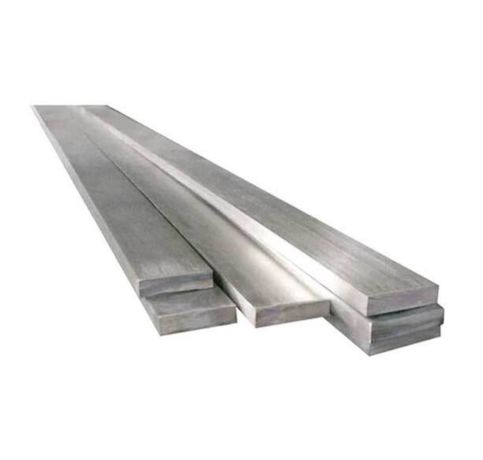

Incoloy 800H Rectangular Bars

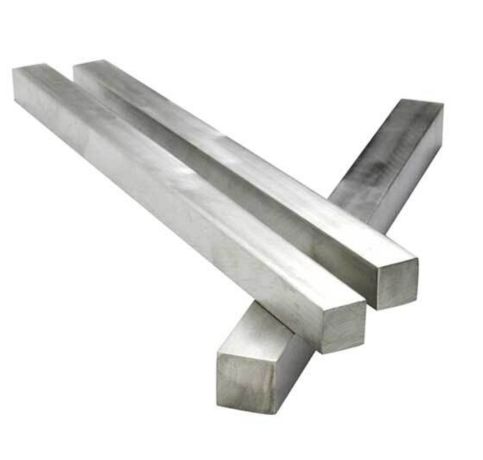

Incoloy 800H Square Rods

At their core, these alloys are nickel-iron-chromium compositions strengthened by the careful addition of titanium and aluminum. This unique blend grants them outstanding mechanical properties, including impressive tensile strength and remarkable resistance to creep and stress rupture, especially in high-temperature settings. The “H” and “HT” variants are specifically optimized with enhanced carbon levels and thermal treatment to deliver superior performance under sustained heat, ensuring they maintain their integrity and structural stability when ordinary steels would falter under the pressure.

Incoloy 800H Bars Supplier in Bahrain, Incoloy UNS N08810 Hollow Rods Price List in Manama, Incoloy Alloy 1.4859 Rectangular Bars Supplier in Sitrah, Incoloy DIN 1.4876 Hexagonal Bars Exporter in Riffa, Incoloy 800 T-Bars Exporter in Bahrain, Incoloy 800HT Flat Rods Exporter in A'ali, ASME SB408 Incoloy Alloy 800HT Flat Bars Bahrain, Incoloy UNS N08811 Hollow Round Bar Manufacturer in Hamad Town, Incoloy Alloy 800HT Round Bars Distributor in Bahrain, Incoloy 800H Polished Rods Dealer in Riffa

Incoloy 800/800H/800HT Bars and Rods Specification

Incoloy 800/800H/800HT Bars Specifications

Specification : ASTM B166, A479 / ASME SB166, SA479

Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

Incoloy Hex Bars : 4mm – 101.6mm

Incoloy Square Bars : 3mm – 100mm

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Length : 1 to 6 Meters, Custom Cut Lengths

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Chemical Compositions of Incoloy 800/800H/800HT Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Alloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Incoloy 800/800H/800HT Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	ЭИ670	Z8NC33-21	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	ЭИ670	–	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	XH32T

You Need Our Support, to Have Any Projects?

Test Certificate

Why Junaid Metals?

Packaging

Weight Chart of Incoloy 800/800H/800HT Bars and Rods

Incoloy 800 Round bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 800/800H/800HT Bars and Rods Types

ASTM B166 Incoloy Alloy 800 Rectangular Rods Exporter in Bahrain, Incoloy 1.4859 Round Bars Stockist in Manama, Incoloy 800 Hex Bars Supplier in Bahrain, Incoloy UNS N08800 Cold Drawn Round Bars Distributor in Bahrain, ASTM B166 Incoloy Alloy 800 Rods Stockist Hamad Town Incoloy 800HT Rods Price in Hamad Town, Incoloy 800H Round Bars, Incoloy DIN 1.4876 Rectangular Bars Supplier in Bahrain

Frequently Asked Questions (FAQ)

Are Incoloy 800/800H/800HT Bars and Rods Corrosion-Resistant?

Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.

Can Incoloy 800/800H/800HT Bars and Rods be Customized in Size and Length?

Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.

How Do Incoloy 800/800H/800HT Bars and Rods Perform in High-Temperature Environments?

Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.

Incoloy 800/800H/800HT Bars and Rods Uses

The real value of these bars and rods is revealed in the heart of industrial operations. You’ll find them forming the backbone of heat-treating equipment, radiant tubes in furnaces, and essential components within petrochemical processing plants where corrosion from carburizing and oxidizing atmospheres is a constant threat. They are equally vital in the nuclear power sector and for critical piping systems, thanks to their ability to perform flawlessly under immense thermal stress. Choosing these materials means investing in durability and safety for the most challenging projects.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
