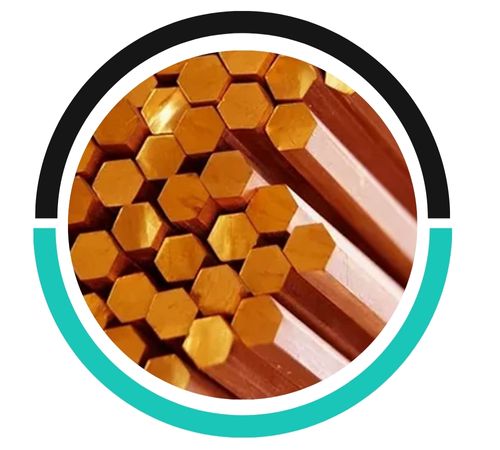

Strategically based in Manama, Bahrain, Junaid Metals has built a strong reputation for delivering high-quality materials with reliability and expertise. We take pride in being your trusted source for Copper C11500 Bar and Rods, a premium grade of electrolytic tough pitch copper known for its exceptional combination of conductivity and formability. Our commitment ensures you receive a product that meets the most demanding specifications, backed by our deep understanding of the regional market’s unique needs.
Copper C11500 is prized for its excellent balance of properties, featuring a minimum of 99.95% copper content. This high purity gives it superior electrical and thermal conductivity. Mechanically, it offers good strength and impressive ductility, allowing it to be easily drawn, formed, and machined into complex components. It also possesses excellent soldering and brazing characteristics, making it a highly versatile material for fabricators who need a reliable and workable copper alloy.
| Specification | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Size Range | 3.17 MM TO 350 MM DIA |
| Length | Random, Fix & Cut Length |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Elements | ||
|---|---|---|
| Cu(1,2,3) | Ag(4) | |
| (1) Oxygen and trace elements may vary depending on the process. (2) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS. (3) Cu value includes Ag. (4) Ag 0.054% min is the equivelant of, Ag 16 Troy Oz min. | ||
| Min (%) | 99.90 | 0.054 |
| Max (%) | – | – |
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Section Size (in) | Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | |||||||||||
| Rod | As Hot Rolled | M20 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | |||
| Hard | H04 | 55 Typ | 50 Typ | 10 Typ | 60 Typ | 94 Typ | 29 Typ | 0.25 | 40 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 2 | 16 | ||
| Hard | H04 | 48 Typ | 44 Typ | 16 Typ | 47 Typ | 87 Typ | 27 Typ | 1 | 35 | ||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | ||||
Yes, Copper C11500 Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, especially in the presence of an electrolyte. Proper insulation or coatings can prevent this.
Yes, Copper C11500 Bars and Rods are suitable for hygienic and sanitary applications due to their natural antimicrobial properties. However, regular maintenance and cleaning are essential to maintain hygiene standards.
Copper C11500 Bars and Rods can be used for natural gas applications, offering excellent corrosion resistance and conductivity. However, they may require additional protective coatings in specific environments to prevent corrosion.
The exceptional electrical properties of C11500 make it the ideal choice for demanding electrical applications, including bus bars, connectors, and various components within power generation systems. Its superb thermal conductivity also makes it perfect for heat exchangers, plumbing fittings, and architectural elements. From intricate electronic parts to robust industrial machinery, these bars and rods provide the reliable performance and longevity that engineers and fabricators depend on for critical projects across numerous sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
