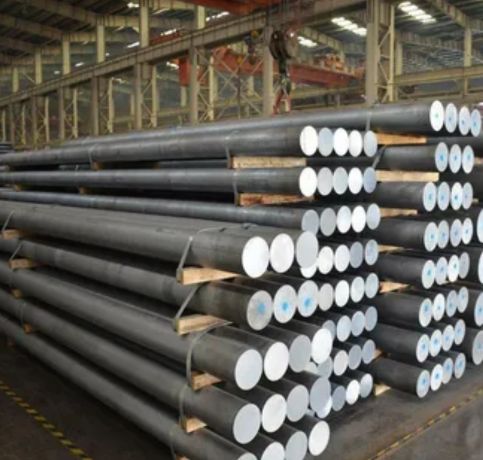

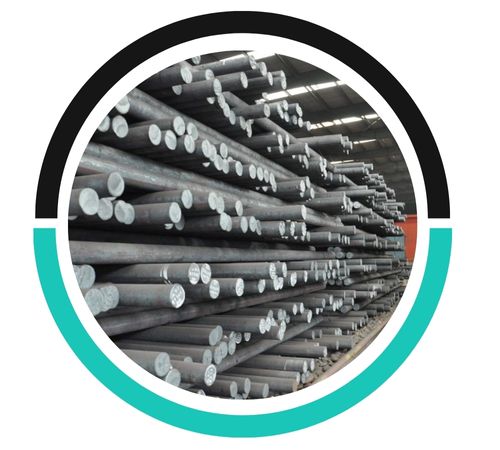

Welcome to Junaid Metals, your trusted partner in Manama, Bahrain, for premium materials built to withstand demanding environments. We take pride in supplying a comprehensive range of industrial products, including the highly resilient Alloy 20 Round Bar. Known for its exceptional corrosion resistance, this alloy is a go-to solution for industries where durability against aggressive chemicals is paramount, ensuring your projects benefit from both strength and longevity right here in the heart of the Gulf.
The strength of the Alloy 20 Round Bar begins with its unique composition, which includes nickel, chromium, and copper, stabilized with columbium. This specific blend gives it outstanding resistance to sulfuric acid and many other corrosive substances. Mechanically, it offers excellent tensile strength and good ductility, making it not only tough but also easy to fabricate into the precise components you need for critical applications, balancing robust performance with practical workability.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

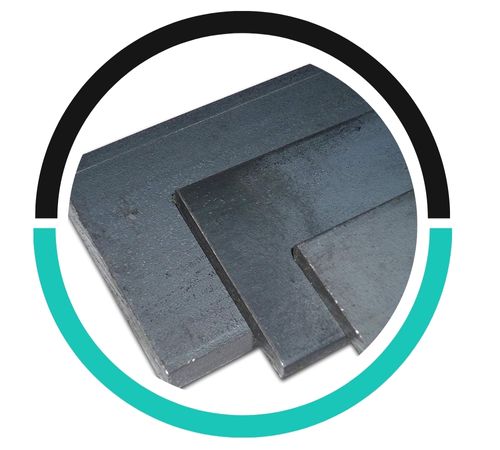

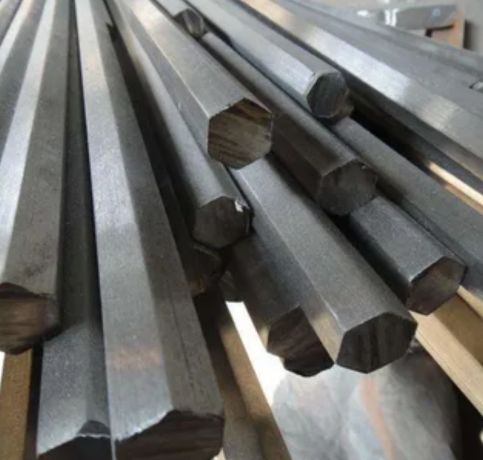

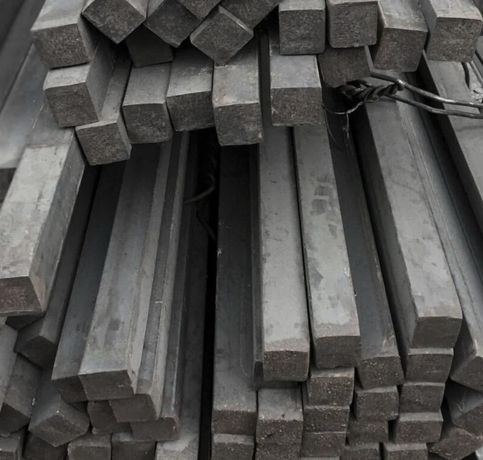

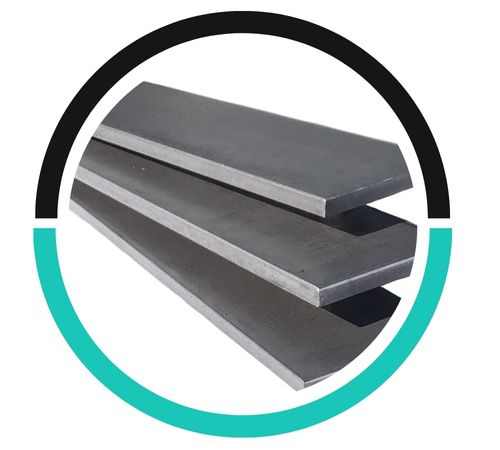

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|
Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |

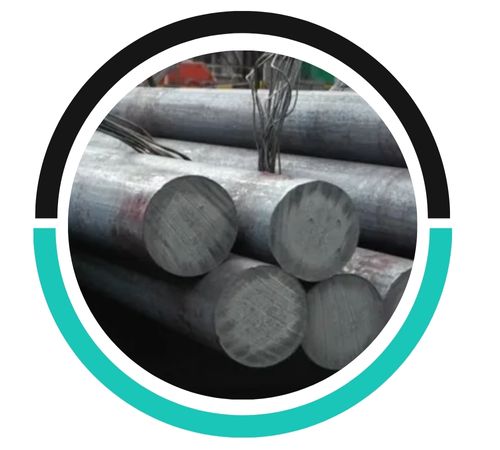

Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
This combination of properties makes the Alloy 20 Round Bar indispensable across several key sectors. It is widely used in chemical processing, pharmaceutical manufacturing, and food production equipment where preventing contamination and withstanding corrosive acids is essential. You’ll also find it in components for plastics manufacturing, heat exchangers, and valves, proving its value wherever reliability in harsh conditions is non-negotiable. Choosing this material means investing in a proven solution that protects the integrity and extends the life of your most important industrial systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
