Welcome to Junaid Metals, your trusted partner in Manama, Bahrain, for precision-engineered Alloy 20 forgings. We pride ourselves on delivering components that are as reliable as they are durable, forged with a commitment to excellence that meets the demanding standards of industries across the region. Our local presence ensures you receive not just a product, but a collaborative solution tailored to your specific operational challenges, backed by expert support right here in the heart of the Gulf.
Crafted from a nickel-iron-chromium alloy enhanced with copper and molybdenum, Alloy 20 forgings are specifically designed to resist aggressive corrosive environments, particularly sulfuric acid. This unique composition gives the material exceptional strength and toughness, allowing it to perform reliably under high stress and elevated temperatures. The forging process itself further refines the grain structure, resulting in superior mechanical properties that outperform standard cast or machined components, ensuring long-lasting performance in the most challenging applications.
| Specifications | ASTM B462, ASME SB462 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

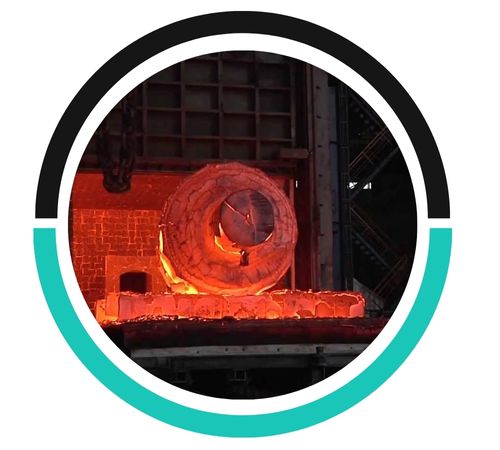

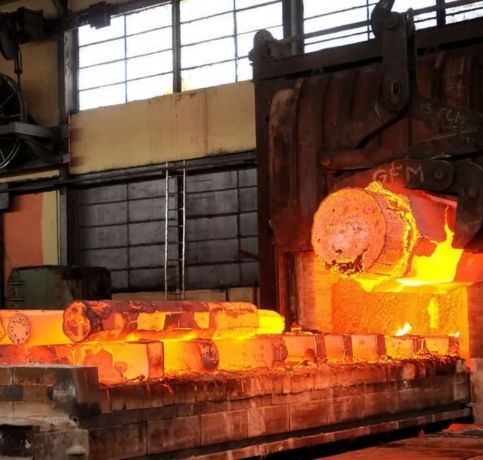

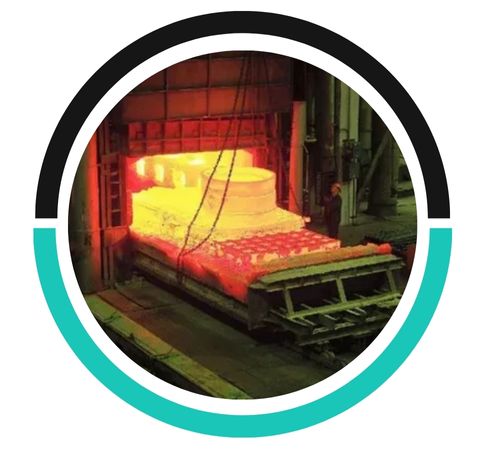

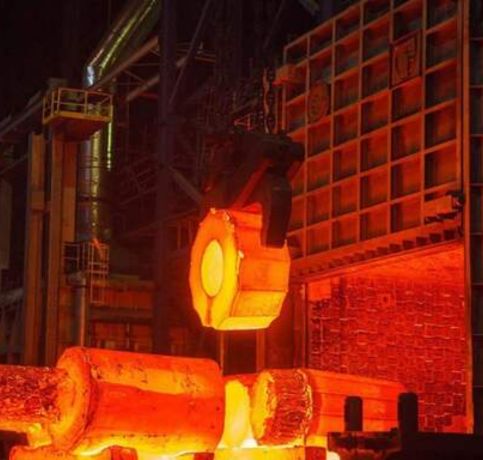

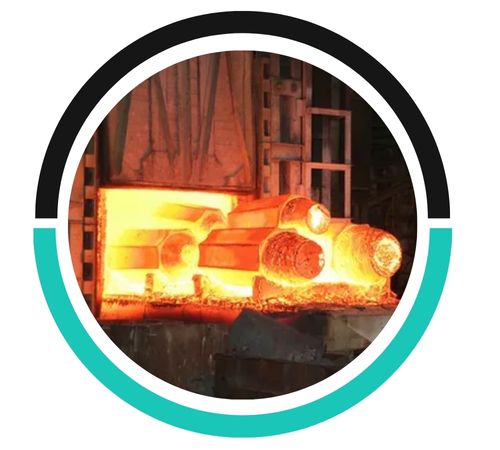

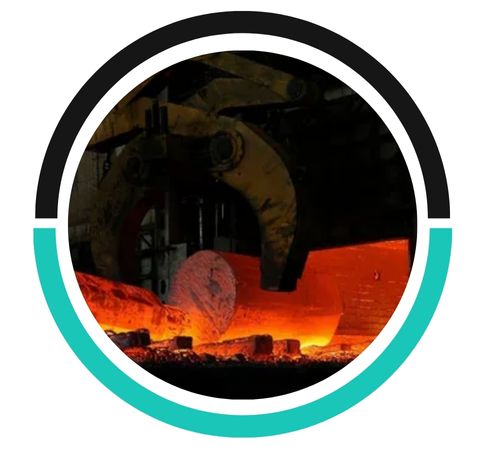

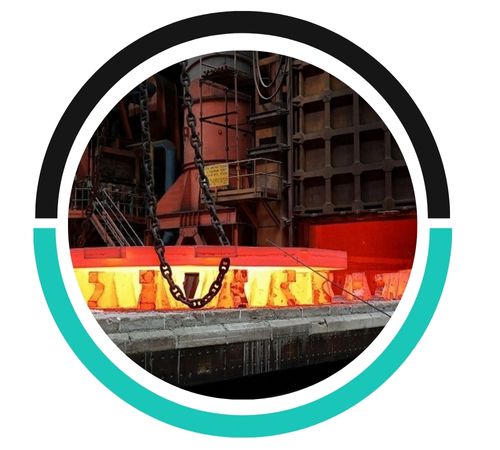

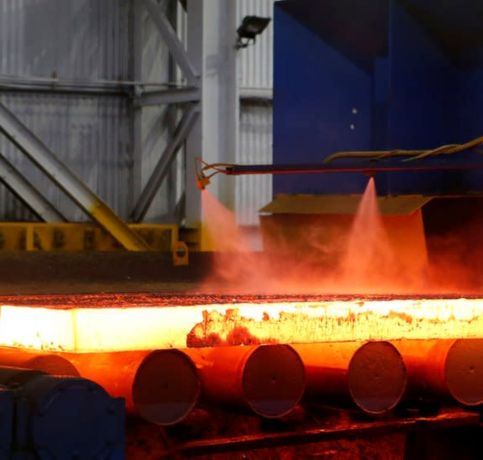

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Yes, Alloy 20 forgings are highly resistant to corrosion, particularly against sulfuric acid, making them ideal for chemical processing environments. Their excellent resistance ensures durability and longevity in harsh conditions.
The maximum operating temperature for Alloy 20 forgings is typically around 1000°F (537°C). However, it is important to consider application conditions and potential stress factors to ensure optimal performance.
Yes, Alloy 20 forgings can be customized for specific applications. They are tailored to meet unique requirements, offering excellent corrosion resistance, durability, and strength for various industrial uses.
The resilience of Alloy 20 forgings makes them indispensable in sectors where failure is not an option. You will commonly find them as critical components in chemical processing equipment, pharmaceutical manufacturing systems, and food production machinery. They are essential for building robust pumps, valves, and fittings that handle corrosive fluids, and their reliability extends to offshore platforms and petrochemical plants, where they help maintain safety and operational integrity in some of the world’s most demanding industrial environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
